Manufacturing from a single source - since 1864

Barbarossawerke - Metal production from the region

Barbarossawerke GmbH offers manufacturing "from a single source". In the areas of casting (EN-GJS, Ni-Hard), sheet metal working (burning, shearing, sawing, rolling, edging, welding), as well as mechanical production (drilling, turning, milling, grooving), parts are manufactured in excellent quality. Furthermore, we offer a convincing know-how in the assembly of welding and machine assemblies up to a weight of 80 tons.

As a 100% subsidiary of Gebr. Pfeiffer SE, the company has its headquarters and manufacturing capacities on the Gebr. Pfeiffer premises in Barbarossastraße in Kaiserslautern.

Our offer at a glance:

  • Casting up to 5 t
  • Sheet metal working up to 3000 mm edge length
  • Welding according to MAG, MIG and TIG methods
  • Painting and sandblasting up to 13 m length
  • Mechanical processing with lathes, milling machines and boring mills
  • Assembly up to 80 t

We will be happy to provide you with more detailed documentation on our offer. Please call us or write to us!
+49 (0)631 4161 319
info@barbarossawerke.com

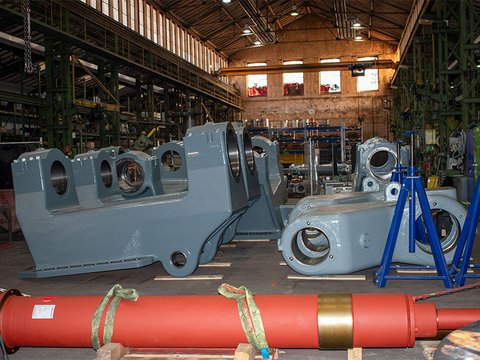

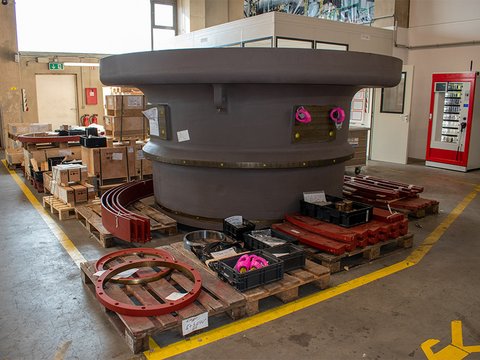

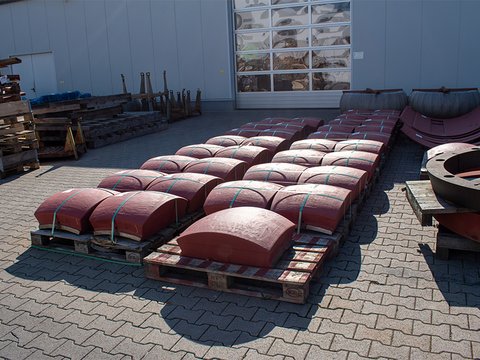

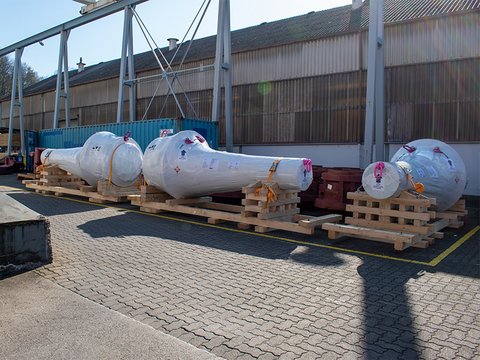

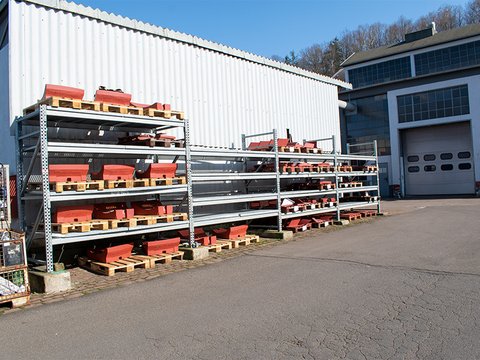

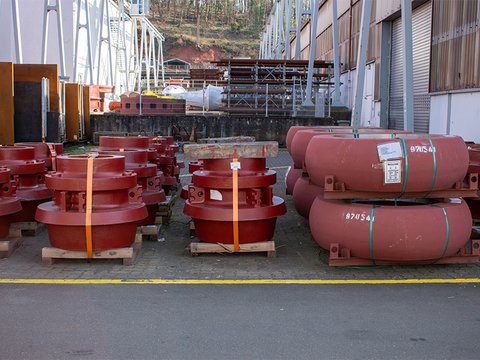

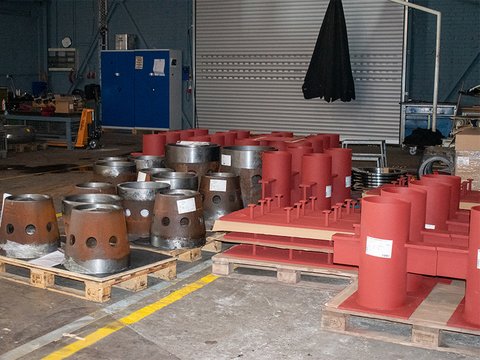

Our wide product range

A look behind the scenes

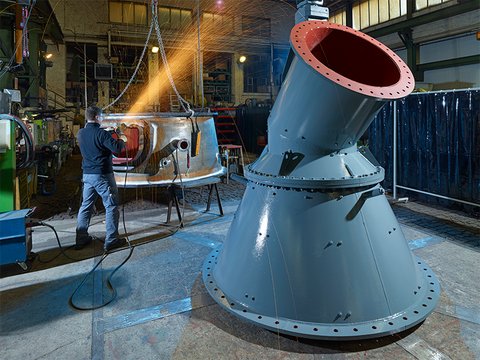

Locksmith's shop

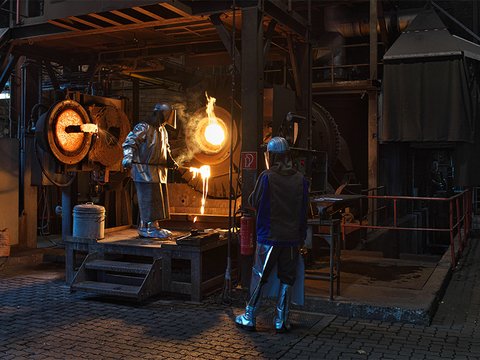

Foundry

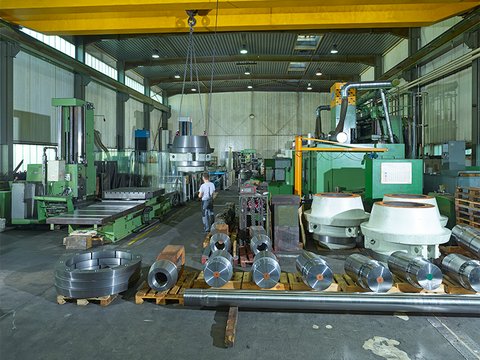

Machine Shop

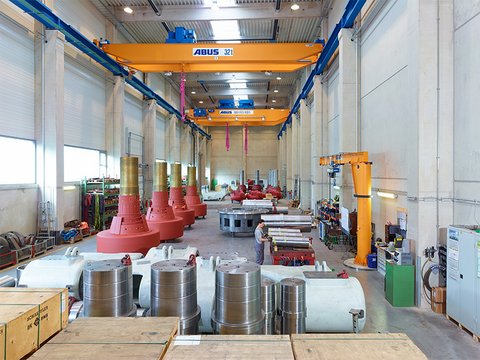

Assembly

Our machines for mechanical processing

Vertical Turning Mill - VC 3500/300 (DÖRRIES-SCHARMANN)

  • max. diameter: 3,500 mm / 138 in
  • face plate diameter: 3,000 mm / 118 in
  • height: 2,000 mm / 79 in
  • max. weight: 25,000 kg / 55,000 lbs

Vertical Turning Mill - YOU JI VTL 1600ATC+C

  • max. diameter: 2,000 mm / 79 in
  • Face plate diameter: 1,600 mm / 63 in
  • Height: 1,200 mm / 47 in
  • max. weight: 8,000 kg / 17,600 lbs

Vertical Turning Mill - SCHIESS

  • max. diameter: 1,400 mm / 55 in
  • Face plate diameter: 1,200 mm / 47 in
  • Height: 1,100 mm / 43 in
  • max. weight: 4,000 kg / 8,800 lbs.

Center Lathe - E110 (WEILER Werkzeugmaschinen)

  • Height of centers: 550 mm / 22 in
  • max. turning length: 3,020 mm / 119 in
  • max. circulation – Ø over bed: 1,100 mm / 43 in
  • max. circulation – Ø cross slide: 730 mm / 29 in
  • max. weight: 6,000 kg / 13,000 lbs.

Center Lathe - E80 (WEILER Werkzeugmaschinen)

  • Height of centers: 400 mm / 16 in
  • max. turning length: 2,700 mm / 106 in
  • max. circulation – Ø over bed: 800 mm / 31.5 in
  • max. circulation – Ø cross slide: 510 mm / 20 in
  • max. weight: 3,500 kg / 7,700 lbs.

Center Lathe - VDF DUE 800 (OERLIKON BOEHRINGER)

  • Height of centers: 410 mm / 16 in
  • max. turning length: 6,000 mm / 236 in
  • max. circulation – Ø over bed: 820 mm / 32 in
  • max. circulation – Ø cross slide: 515 mm / 20 in
  • max. weight: 2.500 kg / 5,500 lbs.

Center Lathe - C30 (WEILER Werkzeugmaschinen)

  • Height of centers: 165 mm / 6.5 in
  • max. turning length: 770 mm / 30 in
  • max. circulation – Ø over bed: 330 mm / 13 in
  • max. circulation – Ø cross slide: 160 mm / 6.3 in
  • max. weight: 50 kg / 110 lbs.

Center Lathe - VDF DUS 560ti (Boehringer)

  • Height of centers: 280 mm / 11 in
  • max. turning length: 2,000 mm / 79 in
  • max. circulation – Ø over bed: 570 mm / 22.4 in
  • max. circulation – Ø cross slide: 365 mm / 14.4 in
  • max. weight: 1,500 kg / 3,307 lbs.

Boring Machine - WHQ 13 CNC (TOS VARNSDORF a.s.)

  • Work area X-axis: 3,500 mm / 138 in
  • Work area Y-axis: 2,500 mm / 99 in
  • Work area Z-axis: 1,250 mm / 49 in
  • Work area W-axis: 800 mm / 32 in
  • Clamping surface table: 1,800 x 2,200 mm / 71 x 89 in
  • Max. weight: 25,000 kg / 55,000 lbs

Boring Machine - WHN 105 CNC (TOS VARNSDORF a.s.)

  • Work area X-axis: 1,800 mm / 71 in
  • Work area Y-axis: 1,600 mm / 63 in
  • Work area Z-axis: 1,250 mm / 49 in
  • Work area W-axis: 630 mm / 25 in
  • Clamping surface table: 1,400 x 1,400 mm / 55 x 55 in
  • Max. weight: 5,000 kg / 11,000 lbs.

Boring Machine - WHN 13 CNC (TOS VARNSDORF a.s.)

  • Work area X-axis: 3,500 mm / 138 in
  • Work area Y-axis: 2,000 mm / 79 in
  • Work area Z-axis: 1,250 mm / 49 in
  • Work area W-axis: 800 mm / 32 in
  • Clamping surface table: 1,800 x 2,200 mm / 71 x 89 in
  • Max. weight: 20,000 kg / 44,000 lbs.

Vertical Milling Machine - MCV 1000 (KOVOSIT MAS)

  • Work area X-axis: 1,016 mm / 40 in
  • Work area Z-axis: 720 mm / 28.3 in
  • Work area Y-axis: 610 mm / 24 in
  • Clamping surface table: 1,300 x 600 mm / 51 x 23,6 in
  • Max. weight: 1,200 kg / 2,646 lbs.
